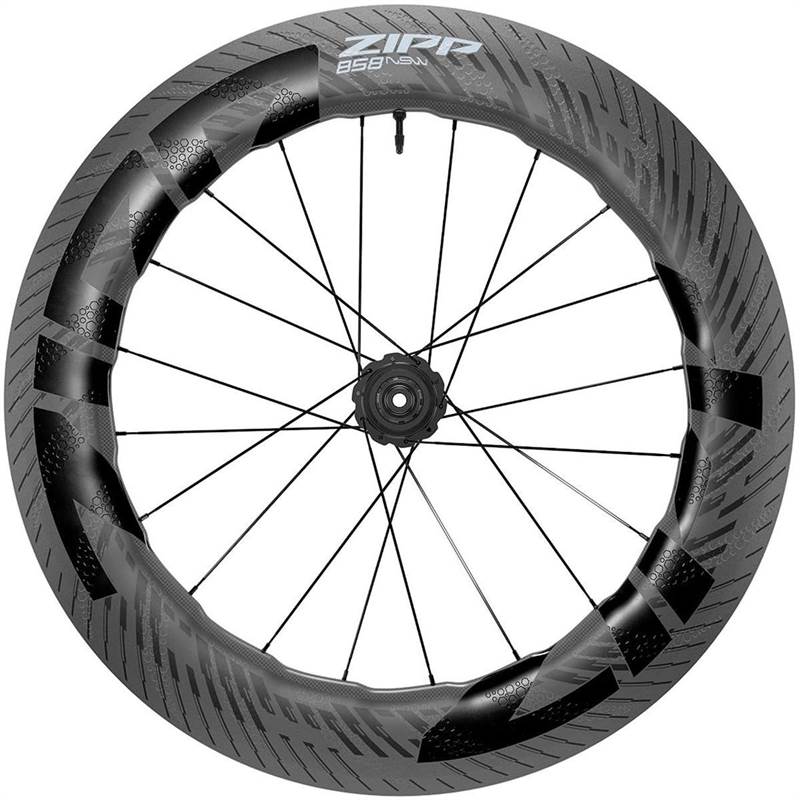

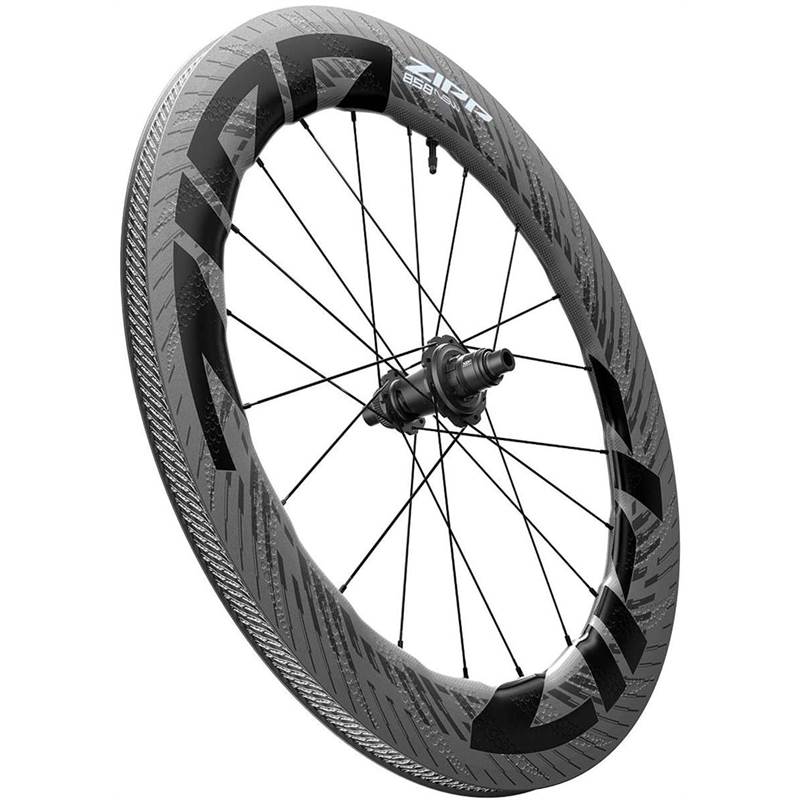

Zipp’s ultimate aero weapon is faster than ever, thanks to our proprietary Total System Efficiency™ technology. With TSE™, the 858 NSW Carbon Tubeless Disc-brake wheelset features a tubeless and hookless rim profile for seamless tire interface and huge drop in weight. The wheel’s internal width is 23mm, ideal for running wider tires with lower pressures for decreased rolling resistance. That’s how TSE™ technology helps you conquer the four barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses. The 858 NSW’s undulating 82mm-deep rim shape, our proprietary Sawtooth™ profile, is our highest performing design for aero efficiency and crosswind stability for AeroBalance™. With Sawtooth, the undulating Hyperfoil™ nodes reduce aerodynamic drag and side force. The result is pure speed for triathlon, time trials, and aggressive road riding. At the center of the 858 NSW is the Cognition V2 Hubset re- engineered with an updated Axial Clutch V2 mechanism for quicker engagement and lower friction as well as improved durability.

Features

• Zipp’s most advanced and fastest deep-rim wheel for road, triathlon, and time trialing
• More than 300 grams lighter that previous model
• Optimized tire bed for easy tire installation
• TSE for greater efficiency and reduced rolling resistance
• Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating rim depth
• Cognition V2 hubset rolls efficiently whether you are pedaling or coasting. Its Axial Clutch V2 technology reduces drag and lowers friction
• Ships with 12mm front and rear end caps
• Center locking rotor interface. Lockring is included with the wheels
• XDR or SRAM/Shimano driver bodies
• Zipp graphics applied using Zipp’s ImPress direct-print technology
• Minimum 25mm tire width
• Campagnolo driver body sold separately
• Lifetime Warranty

Specifications - SRAM Zipp Wheel - 858 Nsw Carbon Tubeless Disc Brake Center Locking 700C - N/A

• Orientation (wheels): Rear
• Size (wheels): 700c
• Rim construction: Carbon – Hookless
• Tire compatibility: Tubeless tires only
• Rim depth: 85mm
• Brake compatibility: Disc (Center Lock)
• Rim - inside width: 23mm
• Rim profile: Symmetrical
• Rim finish: UD fiber, Impress technology
• Nipple material: Aluminum
• Spoke type: CX-Ray - Black
• Spoke count: 20
• Spoke pattern: 2 Cross, Radial drive, 2 Cross non-drive
• Driver body type: n/a, SRAM XDR, SRAM/Shimano Road
• Axle type (Wheels): TA 12x100, TA 12x142
• Bearings Cartridge: Stainless Steel
• Driver Mechanism: Axial Clutch V2, 54 POE, n/a
• Spoke Length DS: 218mm
• Spoke Length NDS: 232mm
• Max outside width: 27mm

Specifications - SRAM Zipp Wheel - 858 Nsw Carbon Tubeless Disc Brake Center Locking 700C - SRAM 10/11 speed

• Orientation (wheels): Rear
• Size (wheels) :700c
• Rim construction: Carbon – Hookless
• Tire compatibility: Tubeless tires only
• Rim depth: 85mm
• Surface texture: ABLC HexFin
• Brake compatibility: Disc (Center Lock)
• Rim - inside width: 23mm
• Rim profile: Symmetrical
• Rim finish: UD fiber, Impress technology
• Colour (Decal): Standard
• Nipple material: Aluminum
• Nipple anti-rotation: Sapim Secure-Loc
• Spoke type: CX-Ray - Black
• Spoke count: 20
• Spoke pattern: 2 Cross
• Hub: Cognition V2
• Driver body type: SRAM/Shimano Road
• Colour (hub): Black
• Axle type (Wheels): TA 12x142
• Axle material: Aluminum front & rear
• Bearings Cartridge: Stainless Steel
• Driver Mechanism: Axial Clutch V2, 54 POE
• Driver body material: Aluminum
• Max tire pressure: 73psi/5.0bar
• Max recommended system weight: 250lbs/114kg
• Spoke Length DS: 230mm
• Spoke Length NDS: 234mm
• Max outside width: 27mm

Specifications - SRAM Zipp Wheel - 858 Nsw Carbon Tubeless Disc Brake Center Locking 700C - SRAM XDR

• Orientation (wheels): Rear
• Size (wheels): 700c
• Rim construction: Carbon – Hookless
• Tire compatibility: Tubeless tires only
• Rim depth: 85mm
• Brake compatibility: Disc (Center Lock)
• Rim - inside width: 23mm
• Rim profile: Symmetrical
• Rim finish: UD fiber, Impress technology
• Nipple material: Aluminum
• Spoke type: CX-Ray - Black
• Spoke count: 20
• Spoke pattern: 2 Cross, Radial drive, 2 Cross non-drive
• Driver body type: SRAM XDR
• Axle type (Wheels): TA 12x142
• Bearings Cartridge: Stainless Steel
• Driver Mechanism: Axial Clutch V2, 54 POE, n/a
• Spoke Length DS: 230mm
• Spoke Length NDS: 234mm
• Max outside width: 27mm
