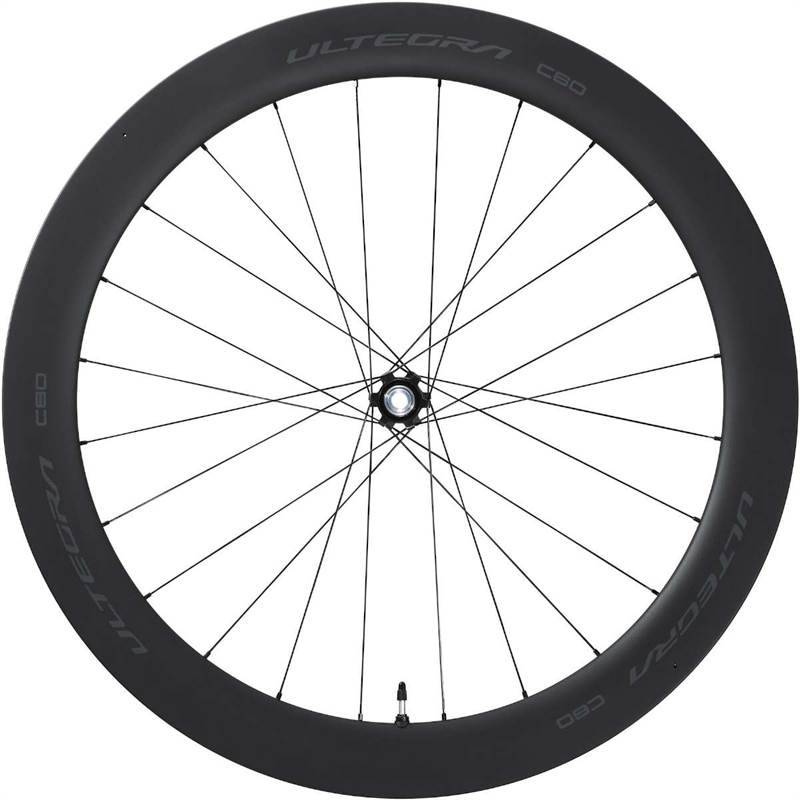

Front

WH-R8170 TL carbon clincher disc brake designed to meet pro road race criteria.

Features

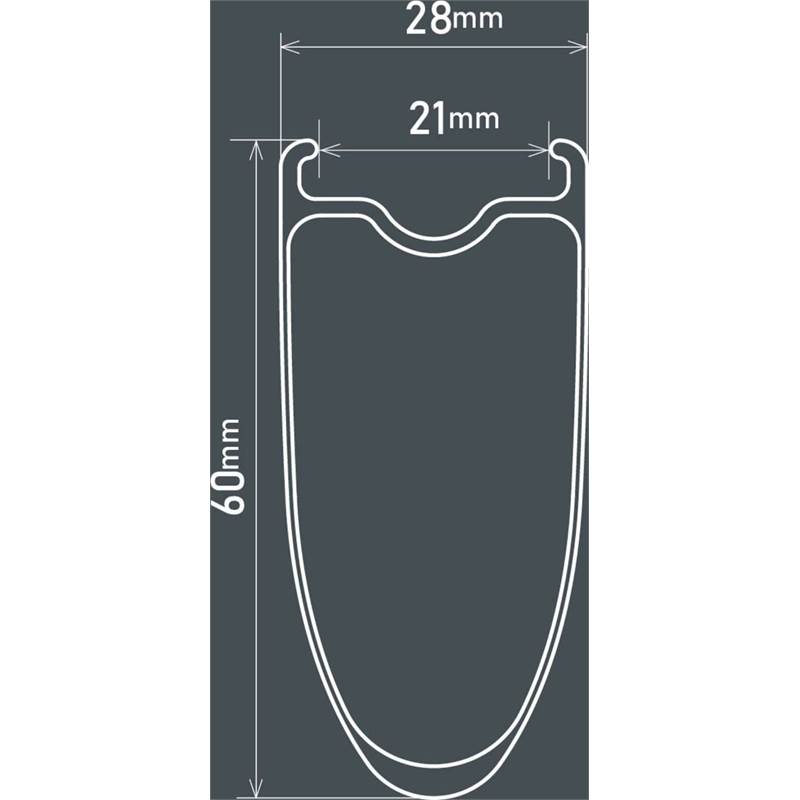

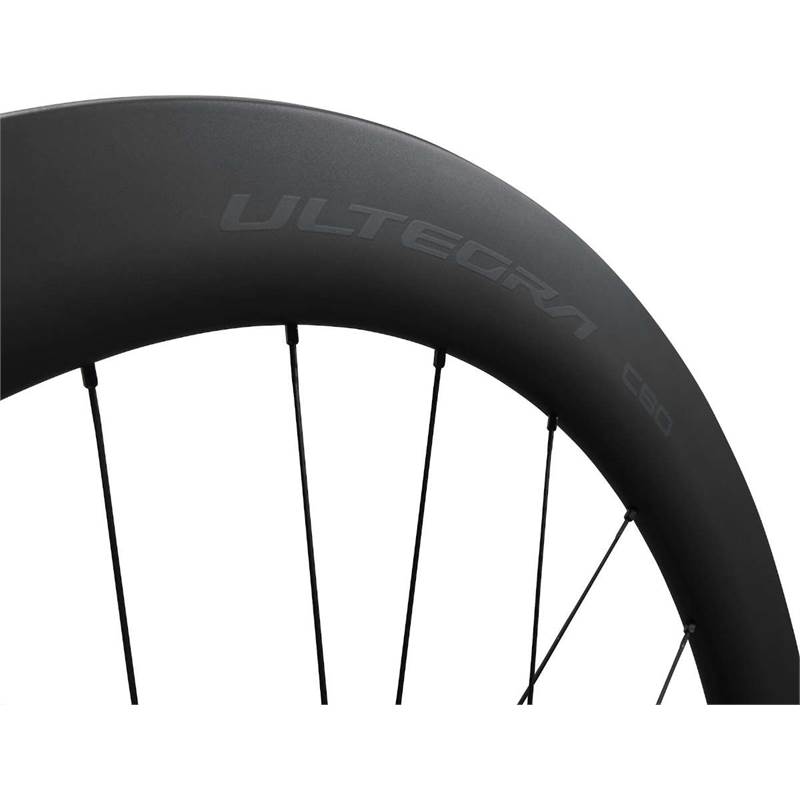

• Lightweight clincher full carbon 60 mm deep rim for improved aerodynamics, increased rigidity and excellent inertia for sprinters and TT specialists
• Easy to use Center Lock rotor mount for use with disc brakes
• Stainless steel butted (2.0-1.8-2.0) and bladed straight pull spokes for optimal balance and rigidity
• Elbow-less spokes make for a strong yet compliant wheel
• High lateral rigidity is produced with a wide flange spacing
• Labyrinth double-contact sealing effectively shuts out water and dirt

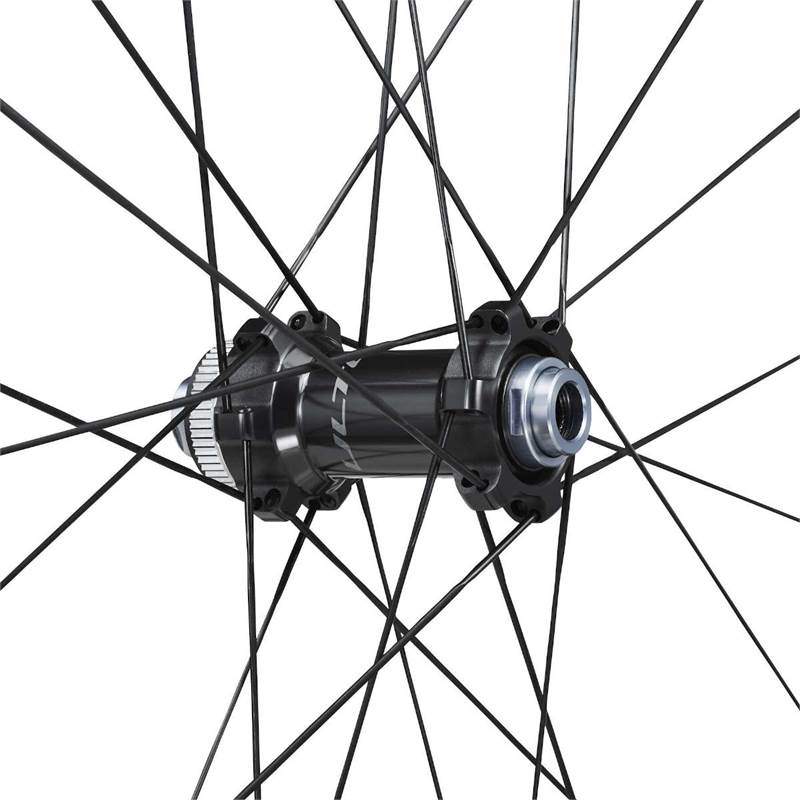

• Alloy cone with integrated steel Borozon treated bearing races - super mirror finish reduces friction
• Cold forged, machined aluminium hub shell and oversized 7075 alloy axle keep the wheel weight to a minimum
• For 100 x 12 mm axle
• 700C tubless clincher compatible
• Axle Type: Bolt Thru 12mm
• Brake Type: Disc
• Discipline: Road
• Discipline: Time Trial & Triathlon
• Hub Width: 100mm
• Rim Depth: 51 - 60mm
• Rim Type: Carbon Clincher
• Rim Width: 20 - 25mm
• Wheel Diameter: 700c

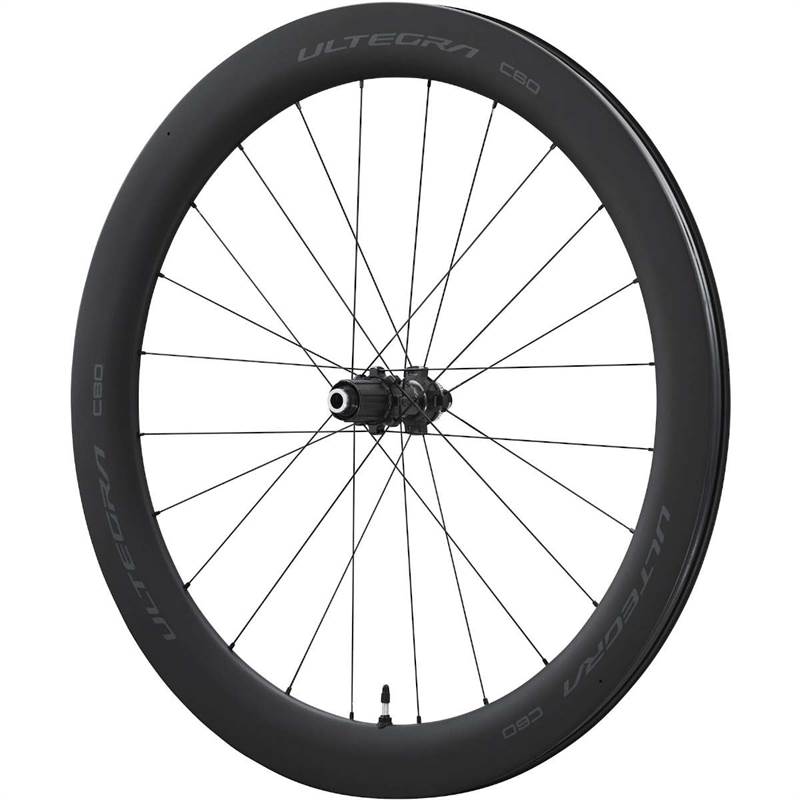

Rear

WH-R8170 TL carbon clincher disc brake designed to meet pro road race criteria.

Features

• Lightweight clincher full carbon 60 mm deep rim for improved aerodynamics, increased rigidity and excellent inertia for sprinters and TT specialists
• Easy to use Center Lock rotor mount for use with disc brakes
• Stainless steel butted (2.0-1.8-2.0) and bladed straight pull spokes for optimal balance and rigidity (OPTBAL)
• Elbow-less spokes make for a strong yet compliant wheel
• High lateral rigidity is produced with a wide flange spacing
• Labyrinth double-contact sealing effectively shuts out water and dirt
• Alloy cone with integrated steel Borozon treated bearing races - super mirror finish reduces friction
• Freehub uses direct engagement interlocking faces for quick power transfer
• Cold forged, machined aluminium hub shell and oversized 7075 alloy axle keep the wheel weight to a minimum
• 700C clincher compatible
• For 142 x 12 mm axle
• 11-12-speed compatible rear wheel
• Axle Type: Bolt Thru 12mm
• Brake Type: Disc
• Discipline: Road
• Discipline: Time Trial & Triathlon
• Freehub: Shimano HG Road
• Hub Width: 142mm
• Rim Depth: 51 - 60mm
• Rim Type: Carbon Clincher
• Rim Width: 20 - 25mm
• Wheel Diameter: 700c
