630Wh

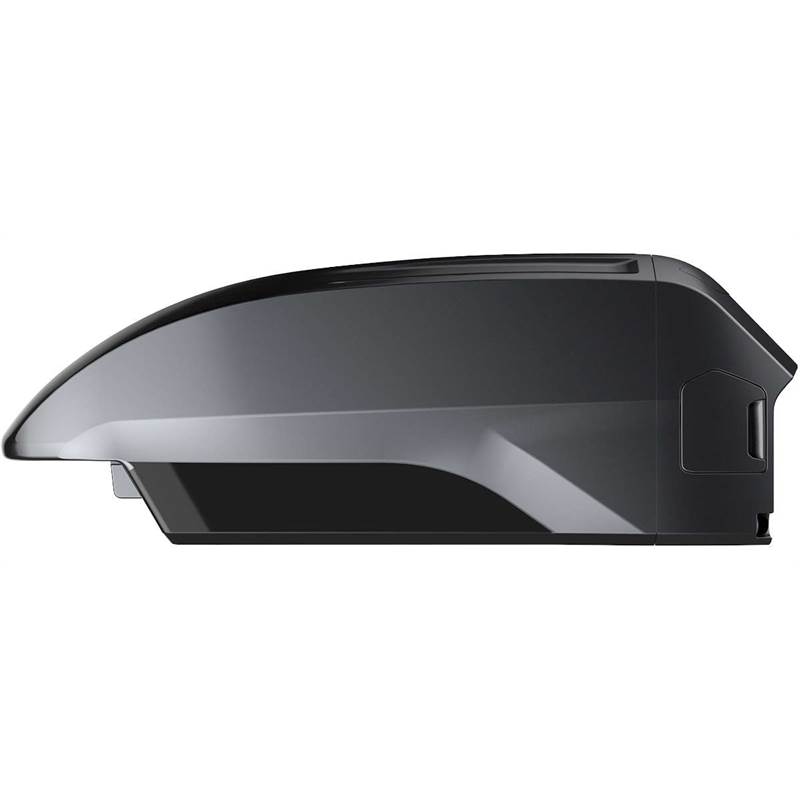

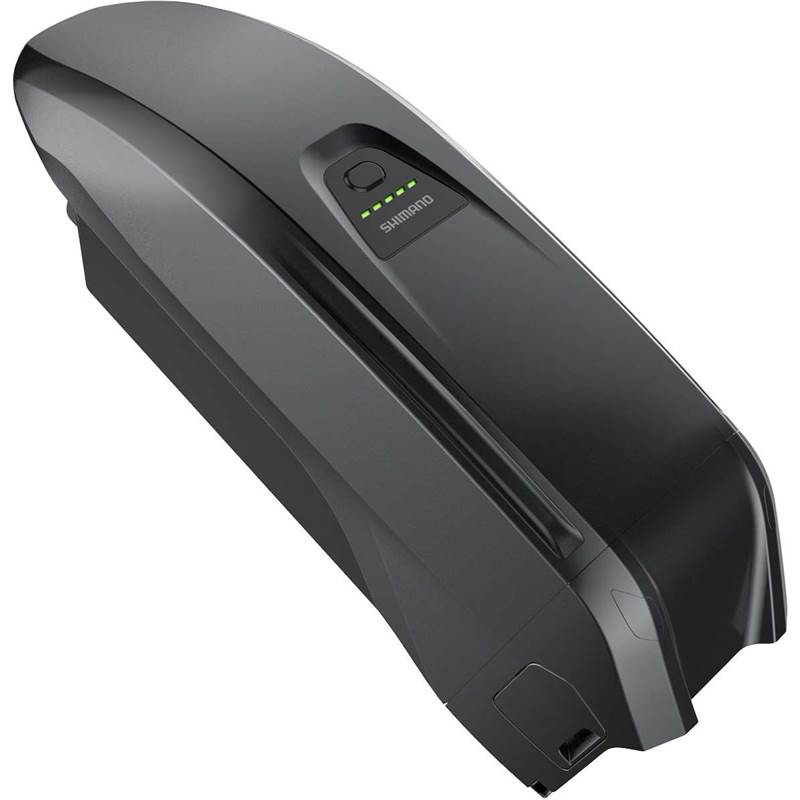

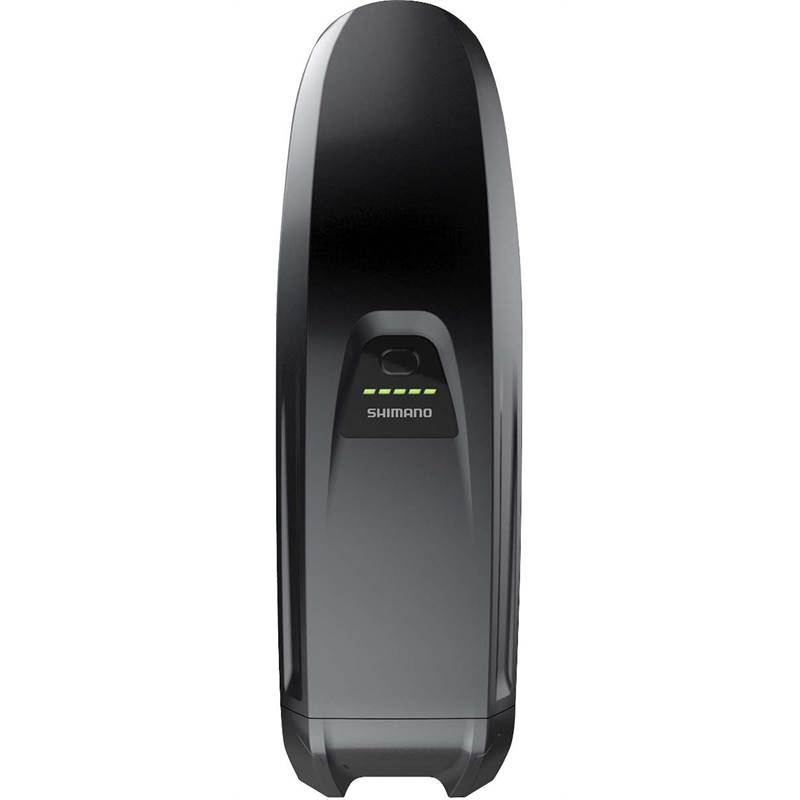

SHIMANO STEPS - Battery for Down Tube - 630 Wh.

Designed specifically for SHIMANO's STEPS system, the BT-E8016 battery mounts to the down tube and features 630 Wh capacity. The compact design provides a low center of gravity for a more natural ride experience.

Features

• Compact and low-center of gravity
• Voltage: 36 V
• Capacity: 17.5 (Ah), 630 (Wh)
• Quick charging: 50% charge 2.5 hours*, Full charge 6 hours* (*When charged with EC-E8004)
• Durable battery retains max. capacity longer: >60% capacity after 1000 charges

Specifications

• MODEL NO: BT-E8016
• SERIES: SHIMANO STEPS E8000 Series
• Color: Standard
• Average weight: 3.2
• Remarks: * BT-E8016 for Japan (16.2 Ah, 583 Wh) ** By EC-E8004 (*** In case of 100 V AC)
• Chemistry: Li-Ion
• Position: External
• Rated voltage (V): 36
• Rated capacity (Ah): * 17.5
• Rated capacity (Wh): * 630
• Cyclelife span for charge (times)" 1,000 (more than 60%)
• Time to charge (hour)|SOC = 100%: ** 4.8 (*** 5.7)
• Time to charge (hour)|SOC = 80%: ** 3.2 (*** 4)
• Charge level display: Yes
• Error signal: Yes
• Charging port: Yes
• System on/off switch: Yes
• Compatible battery mount BM-E8016
• Compatible charger EC-E6002, EC-E8004

500Wh

SHIMANO STEPS - Battery for Down Tube - 504 Wh.

Designed specifically for SHIMANO STEPS E8000 mountain bike system, the BT-E8010 mounts on the down tube and features 504 Wh capacity.

Features

• MTB dedicated design: Low profile, Impact and vibration resistant, Waterproof
• Capacity: 504Wh (36V, 14Ah)
• Durable battery: Consistent recharge, Compatible with either BM-E8016 or BM-E8010, Keep compatibility with current EC-E6000 and current frame mount
• Battery life: * 1000 cycles * After 1,000 cycles full charging still more than 300Wh=60% (Reference)

Specifications

• MODEL NO: BT-E8010
• SERIES: SHIMANO STEPS E7000 Series
• Color: Black
• Average weight: 2.6
• Remarks: * BT-E8010 for Japan (13 Ah, 468 Wh) ** By EC-E8004 (*** In case of 100 V AC)
• Chemistry: Li-Ion
• Position: Down tube
• Rated voltage (V): 36
• Rated capacity (Ah): * 14
• Rated capacity (Wh): * 504
• Cyclelife span for charge (times): 1,000 (more than 60%)
• Time to charge (hour)|SOC = 100%: ** 4 (*** 4.5)
• Time to charge (hour)|SOC = 80%: ** 2.5 (*** 3.2)
• Charge level display: Yes
• Error signal: Yes
• Charging port: Yes
• System on/off switch: Yes
• Compatible battery mount: BM-E8016
• Compatible charger: EC-E6002, EC-E8004

418Wh

Features

• MTB dedicated design: Low profile, Impact and vibration resistant, Waterproof
• Capacity: 418Wh (36V, 11.6Ah)
• Durable battery: Consistent recharge, Compatible with either BM-E8016 or BM-E8010, Keep compatibility with current EC-E6000 and current frame mount
• Battery life: * 1000 cycles * After 1,000 cycles full charging still more than 300Wh=60% (Reference)

Specifications

• MODEL NO: BT-E8014
• SERIES: SHIMANO STEPS E7000 Series
• Color: Standard
• Average weight: 2.55
• Remarks: * BT-E8014 for Japan (10.9 Ah, 393 Wh) ** By EC-E8004 (*** In case of 100 V AC)
• Chemistry: Li-Ion
• Position: Down tube
• Rated voltage (V): 36
• Rated capacity (Ah): * 11.6
• Rated capacity (Wh): * 418
• Cyclelife span for charge (times): 1,000 (more than 60%)
• Time to charge (hour)|SOC = 100%: ** 3.0 (*** 3.5)
• Time to charge (hour)|SOC = 80%: ** 2.0 (*** 2.5)
• Charge level display: Yes
• Error signal: Yes
• Charging port: Yes
• System on/off switch: Yes
• Compatible battery mount: BM-E8016
• Compatible charger: EC-E6002, EC-E8004
