Black and Carbon

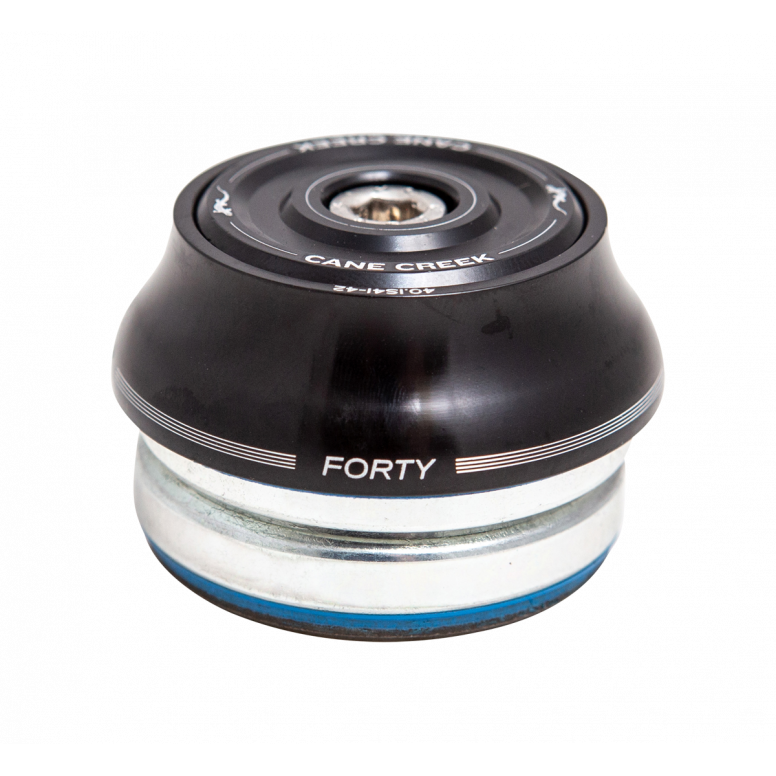

The 40-Series is the work-horse of Cane Creek's headset line-up. The series incorporates all the features necessary for a durable, light-weight, long-lasting headset and represents the perfect balance of performance, durability and value. Suitable for any type of bike including road, gravel MTB.

The new ZN40 bearings are a zinc-coated, machined steel cartridge bearing with hardened steel balls. The new material is much more corrosion-resistant, which vastly increases the longevity of the 40 series headsets.

Features

• Machined from 6061 T-6 Aluminium
• Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts
• High quality, low friction face-seals
• Durable steel crown race
• Dependable ZN40, sealed bearings
• Interlock spacer compatible

Weights and Sizes

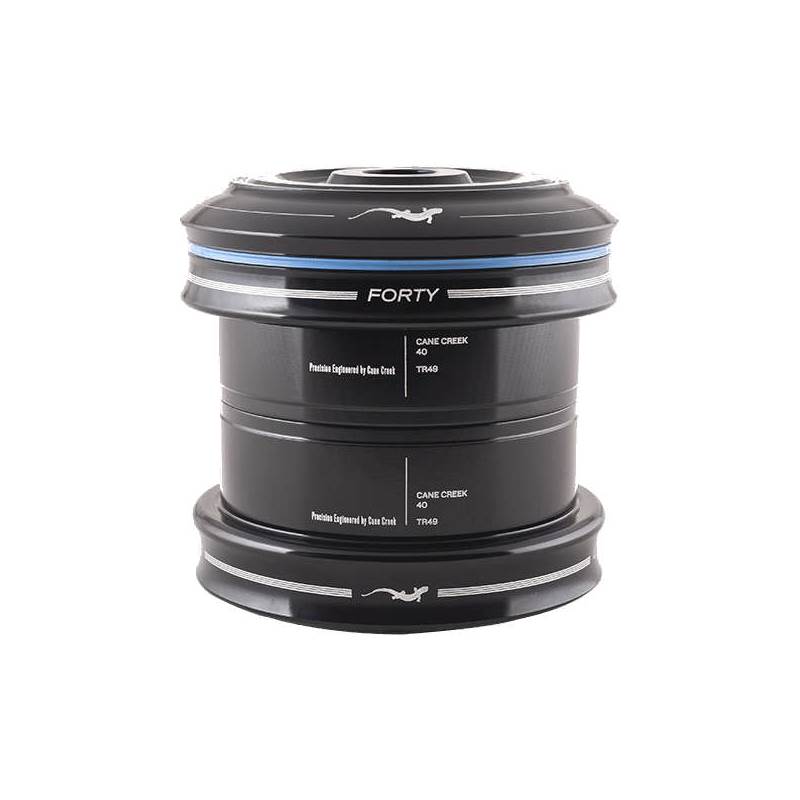

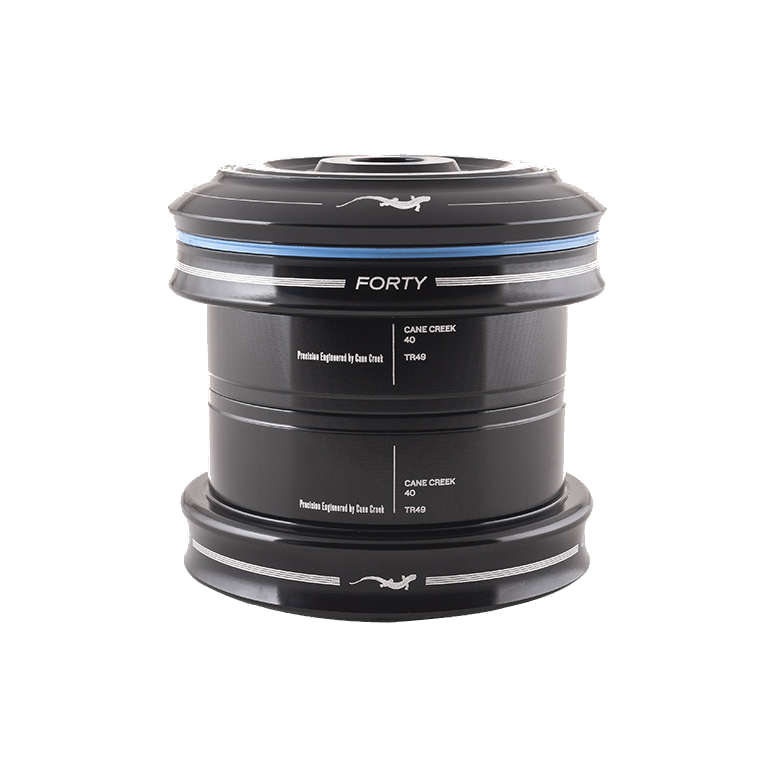

• Black - 16mm - EC30/25.4|EC30/26: Upper/Lower stack: 16/12mm, Weight: 89g

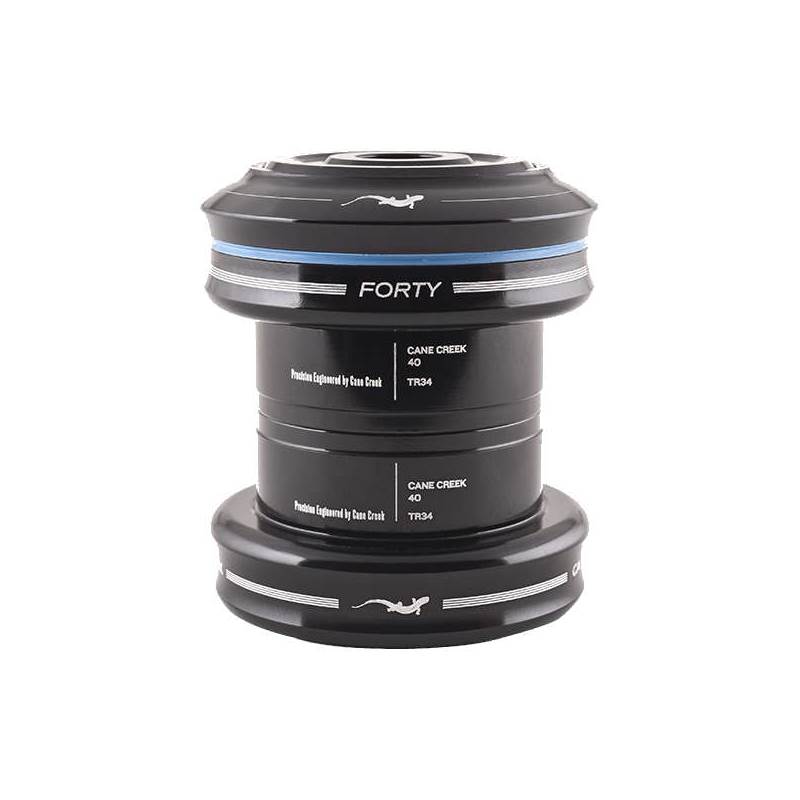

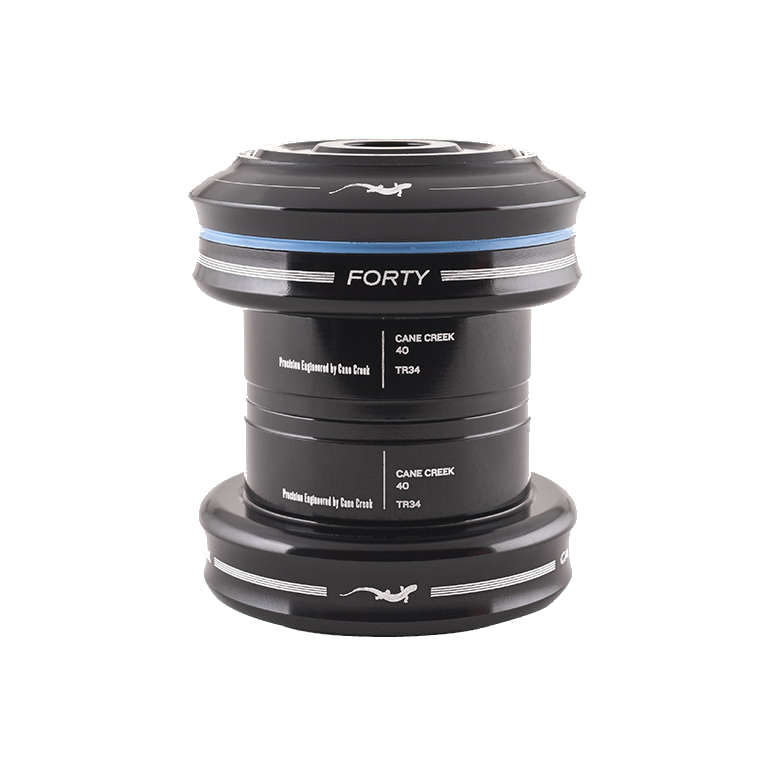

• Black -16mm - EC34/28.6|EC34/30: Upper/Lower stack: 16/12mm, Weight: 98g
• Black - 16mm - EC49/38.1|EC49/40: Upper/Lower stack: 16/12mm, Weight: 156g

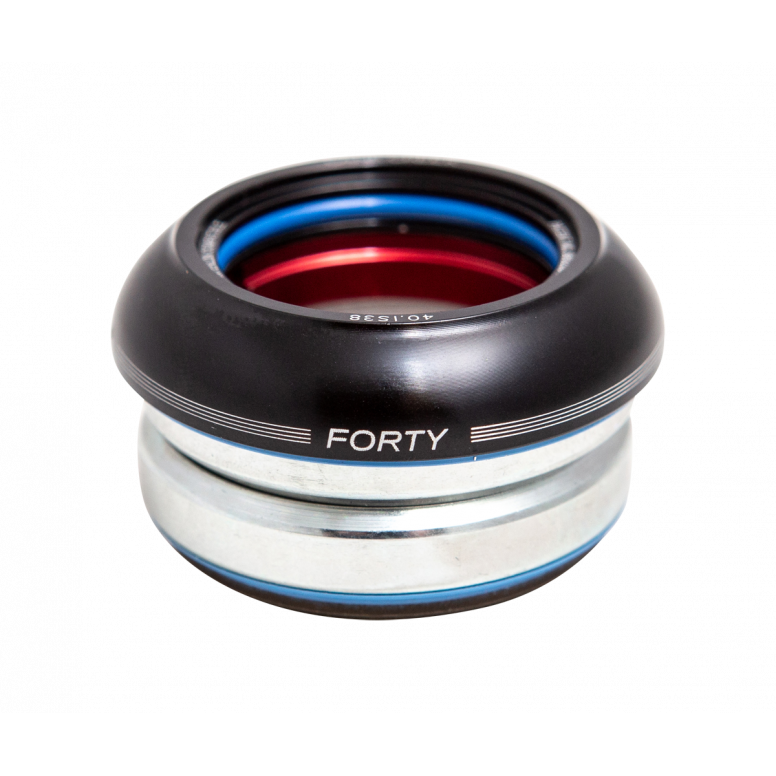

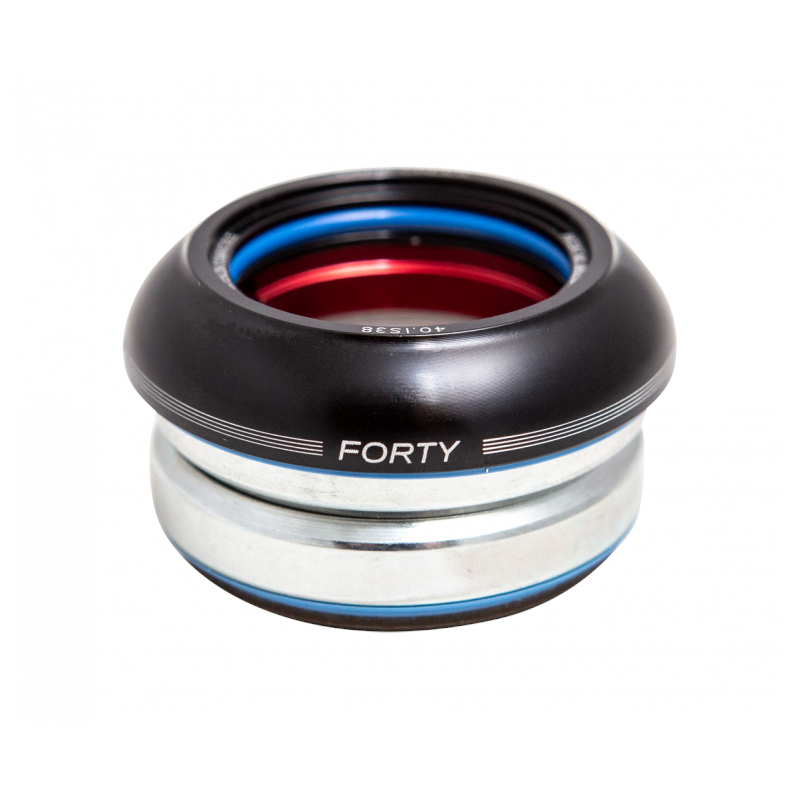

• Black - 9mm - IS38/25.4|IS38/26: Upper/Lower stack: 9/1mm, Weight: 65g

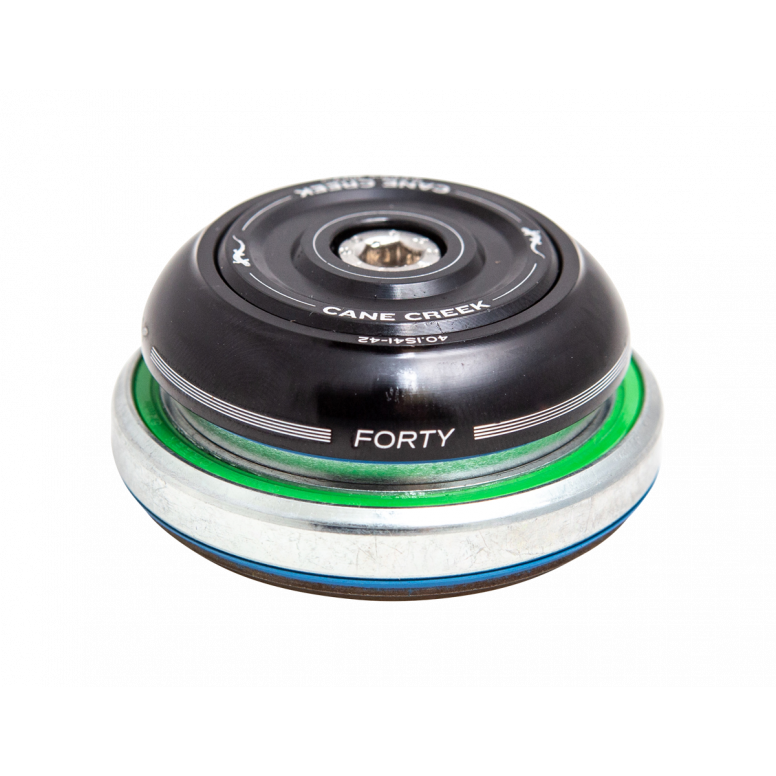

• Black - 9mm - IS41/28.6 | IS52/40: Upper/Lower stack: 9/1mm, Weight: 92g
• Black - 16mm - IS41/28.6 | IS52/40: Upper/Lower stack: 9/1mm, Weight: 92g

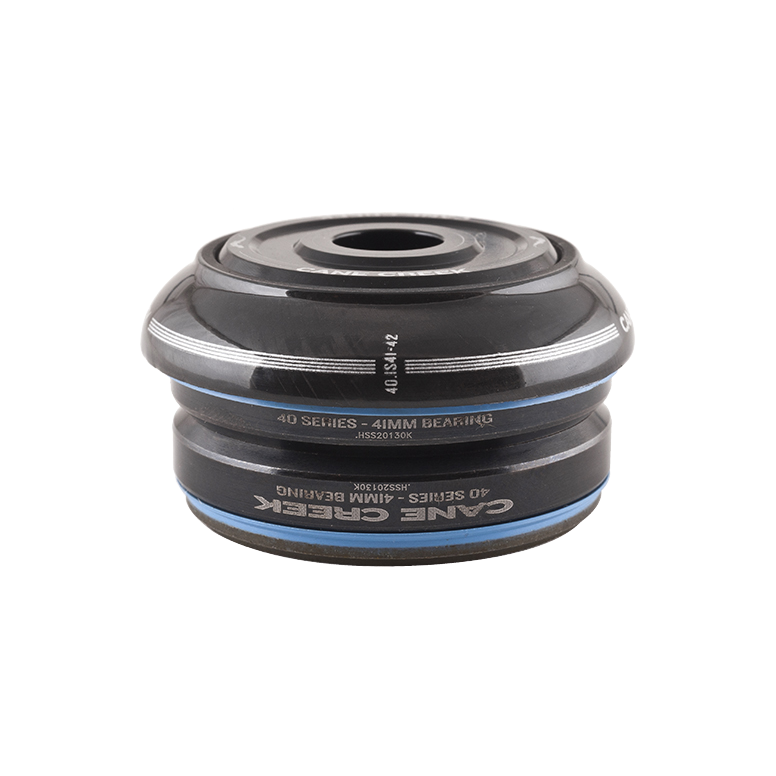

• Carbon - 8mm - IS41/28.6|IS41/30: Upper/Lower stack: 9/1mm, Weight: 71g

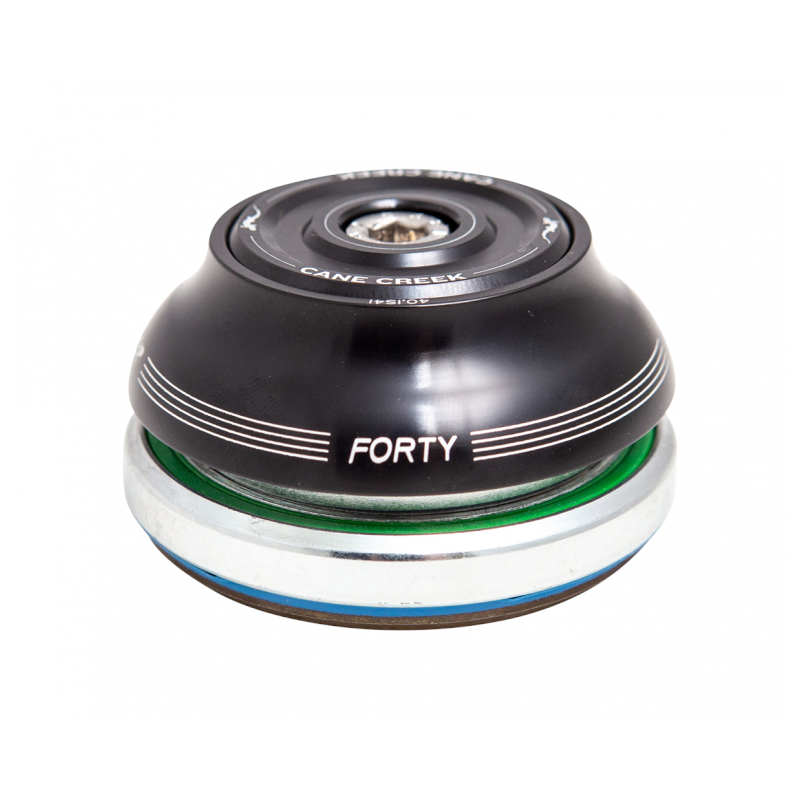

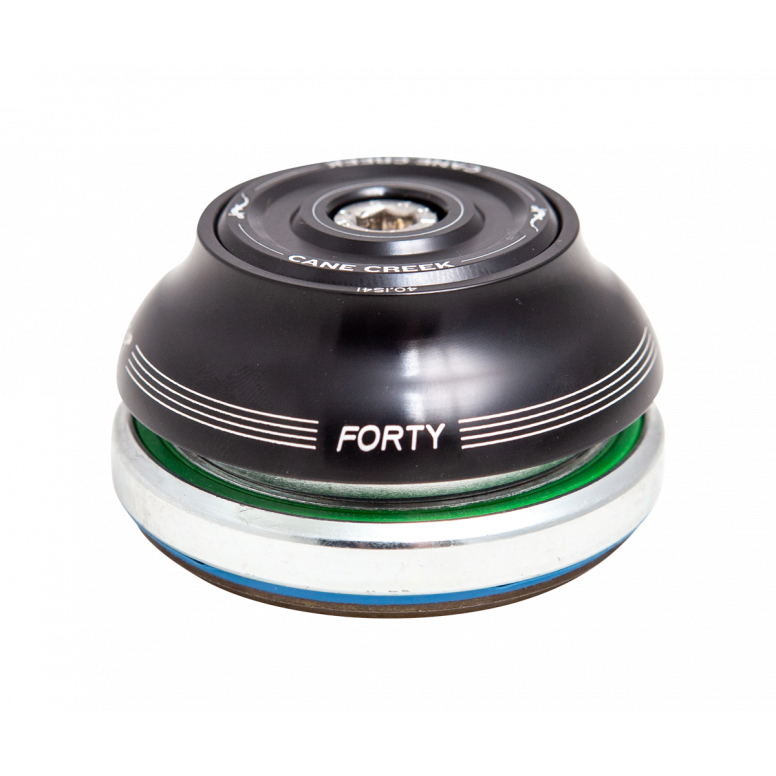

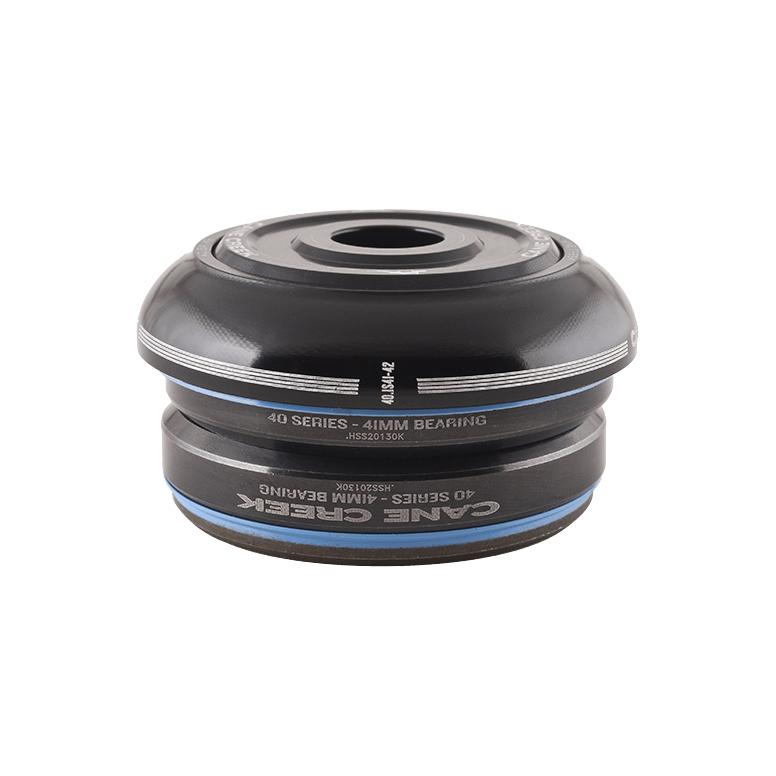

• Black - 9mm - IS41/28.6|IS41/30: Upper/Lower stack: 9/1mm, Weight: 71g
• Black - 16mm - IS41/28.6|IS41/30: Upper/Lower stack: 9/1mm, Weight: 71g

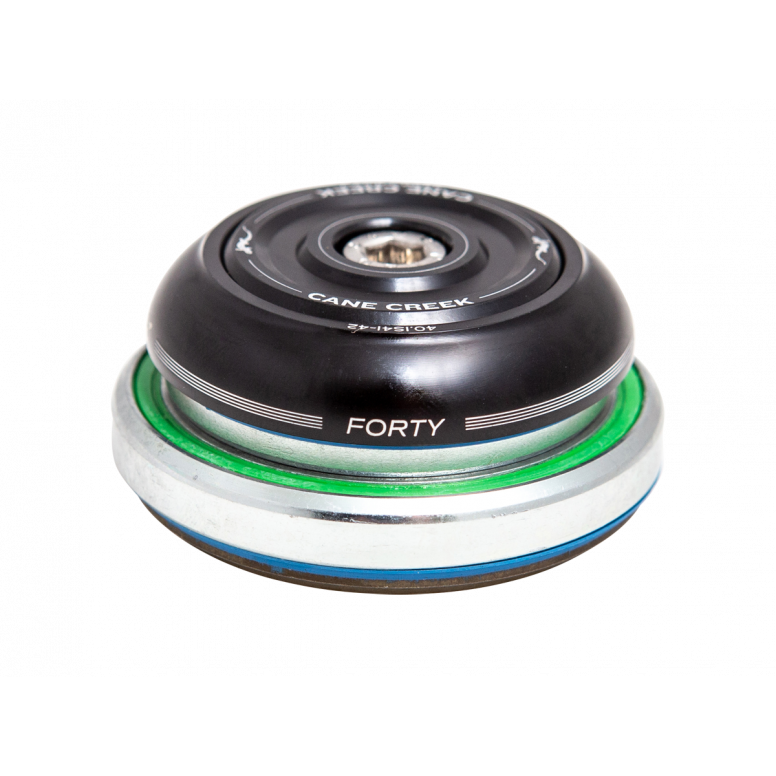

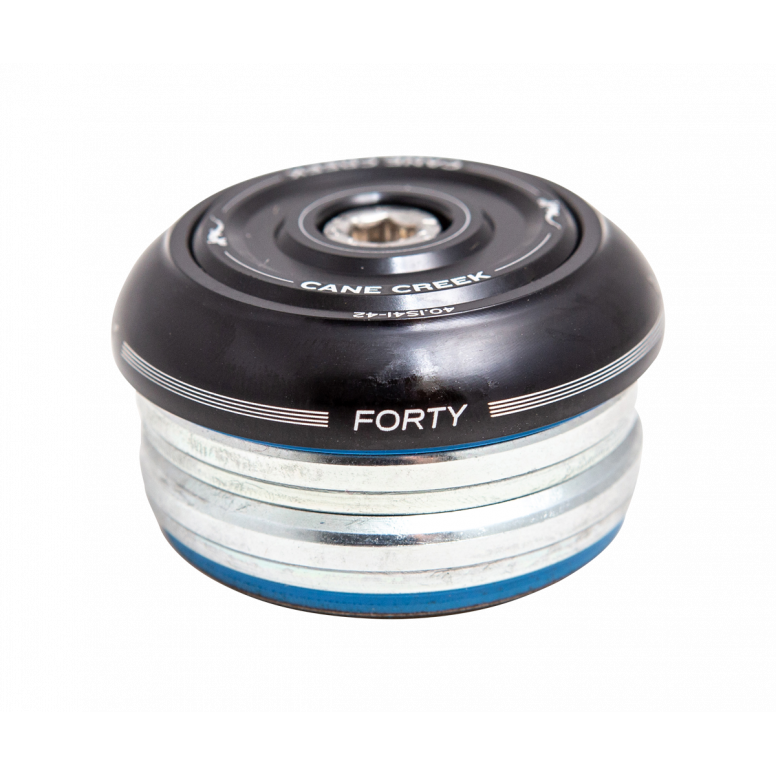

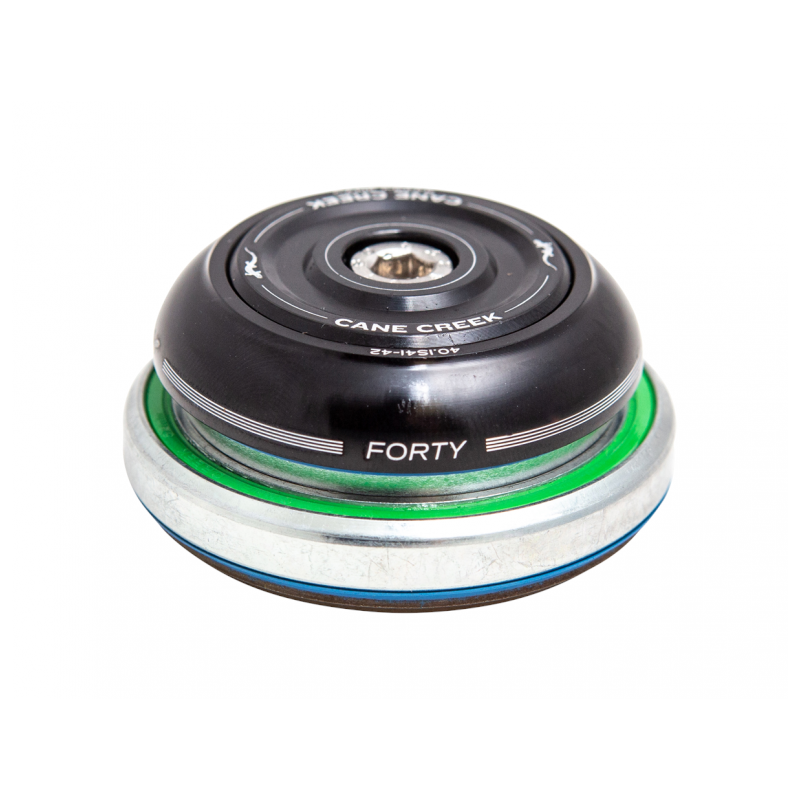

• Black - 9mm - IS42/28.6 | IS52/40: Upper/Lower stack: 9/1mm, Weight: 84g
• Black - 9mm - IS42/28.6|IS42/30: Upper/Lower stack: 9/1mm, Weight: 72g

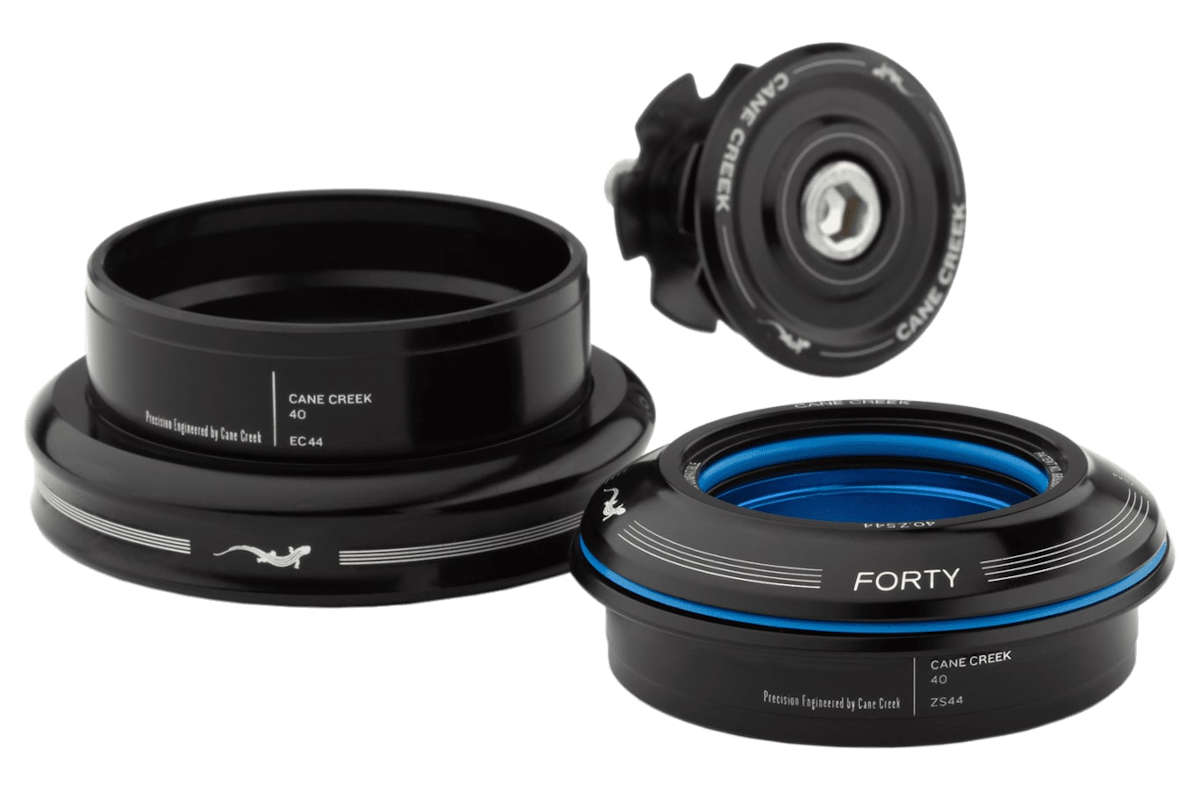

• Black - 8mm - ZS44/28.6 | EC44/40: Upper/Lower stack: 8/12mm

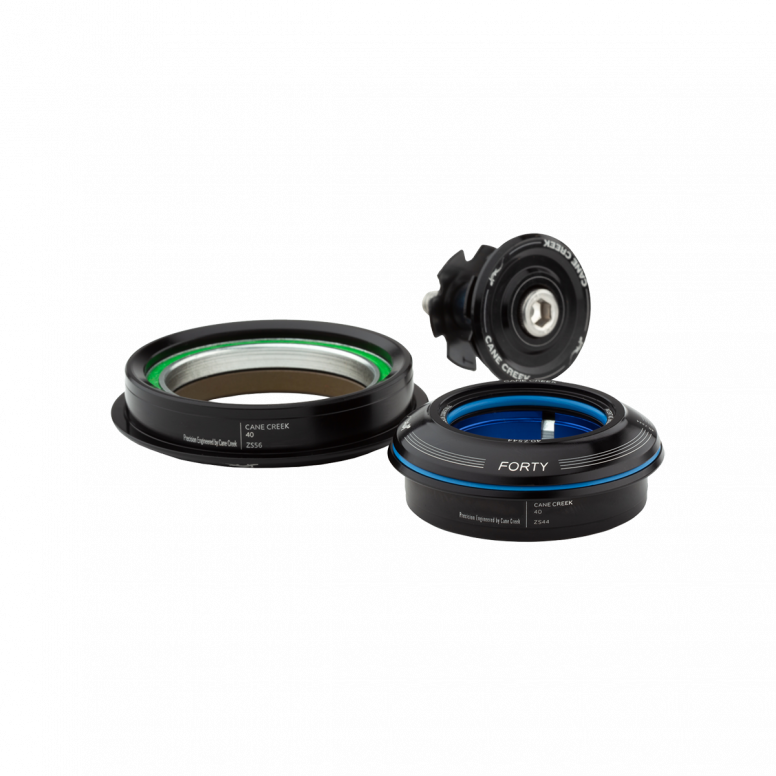

• Black - 8mm - ZS44/28.6 | ZS56/40: Upper/Lower stack: 8/12mm, Weight: 190g

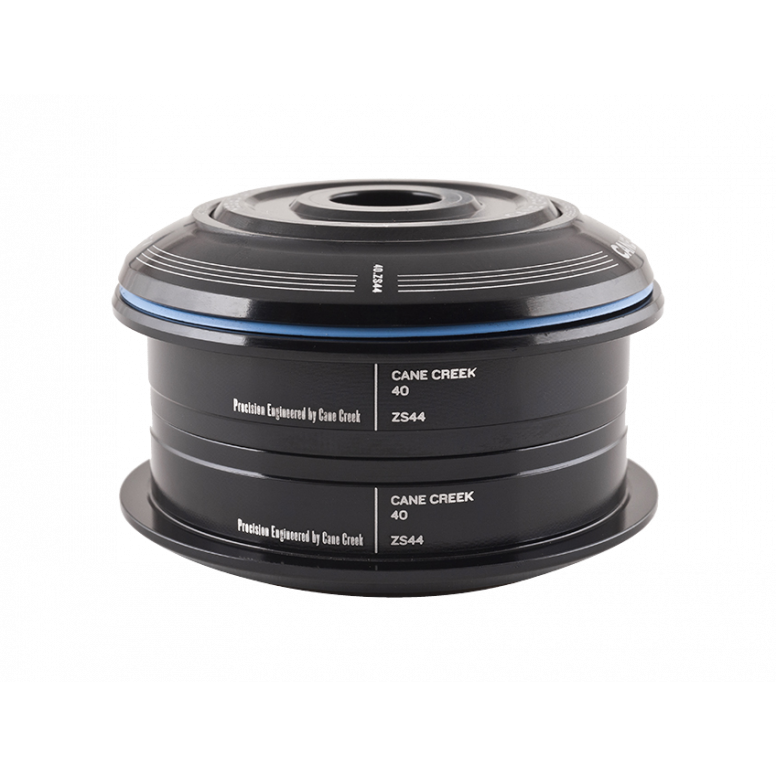

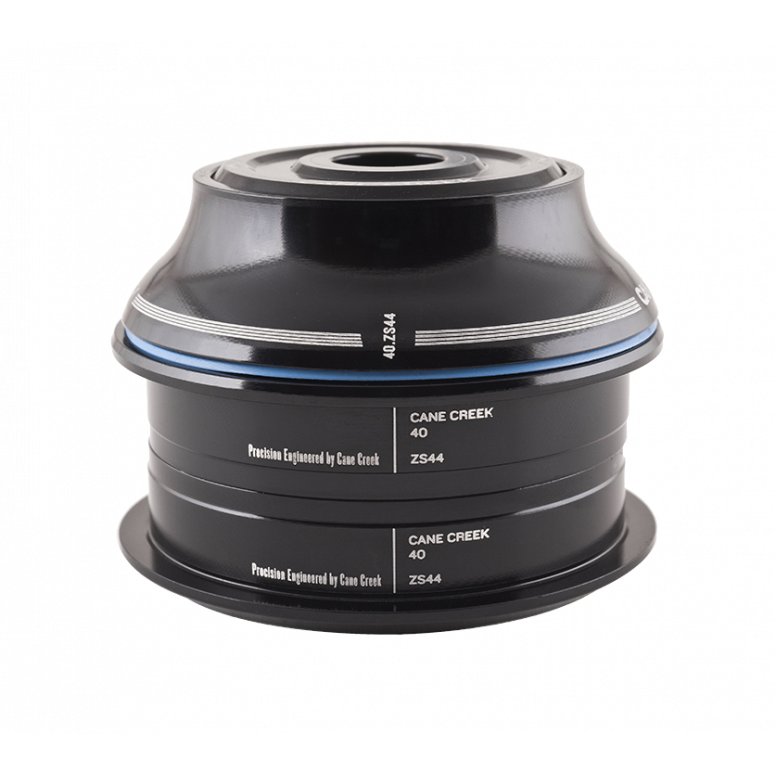

• Black - 8mm - ZS44/28.6|ZS44/30: Upper/Lower stack: 8/4mm, Weight: 88g
• Black - 15mm - ZS44/28.6|ZS44/30: Upper/Lower stack: 8/4mm, Weight: 88g

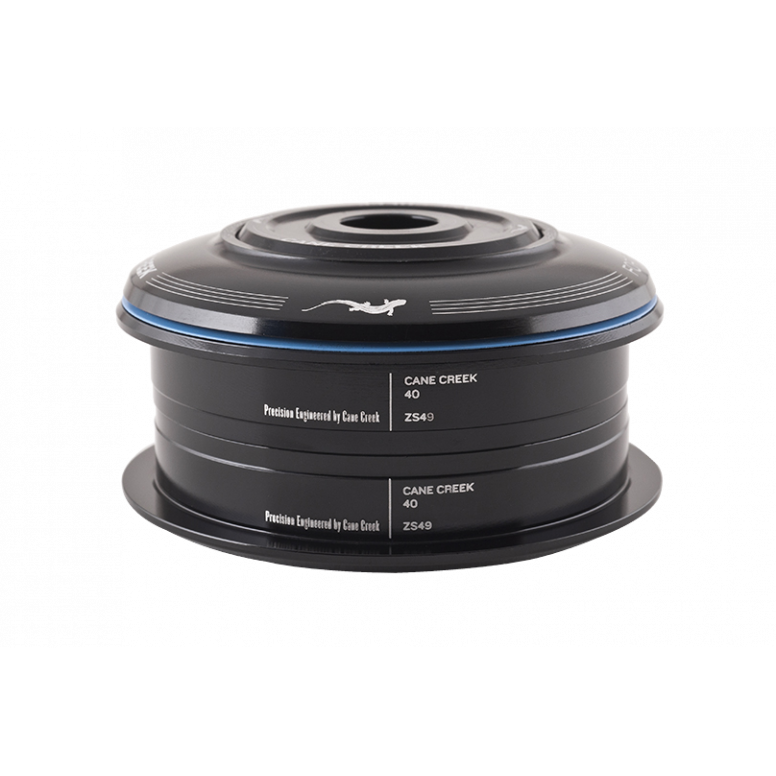

• Black - 8mm - ZS49/28.6|ZS49/30: Upper/Lower stack: 8/4mm, Weight: 115g
• Black - 16mm - ZS49/28.6|ZS49/30: Upper/Lower stack: 16/12mm, Weight: 156g
