The type and number of NAWA Fender Basket Connectors you require depends upon the combination of fender baskets you have and how they are fitted.

NAWA fender baskets are connected to the guard rail using Swivel Connectors and they are connected to each other using Parallel Connectors. These connectors are required when fitting fender baskets but they are not included with the basket. Instead, they are sold separately as accessories.

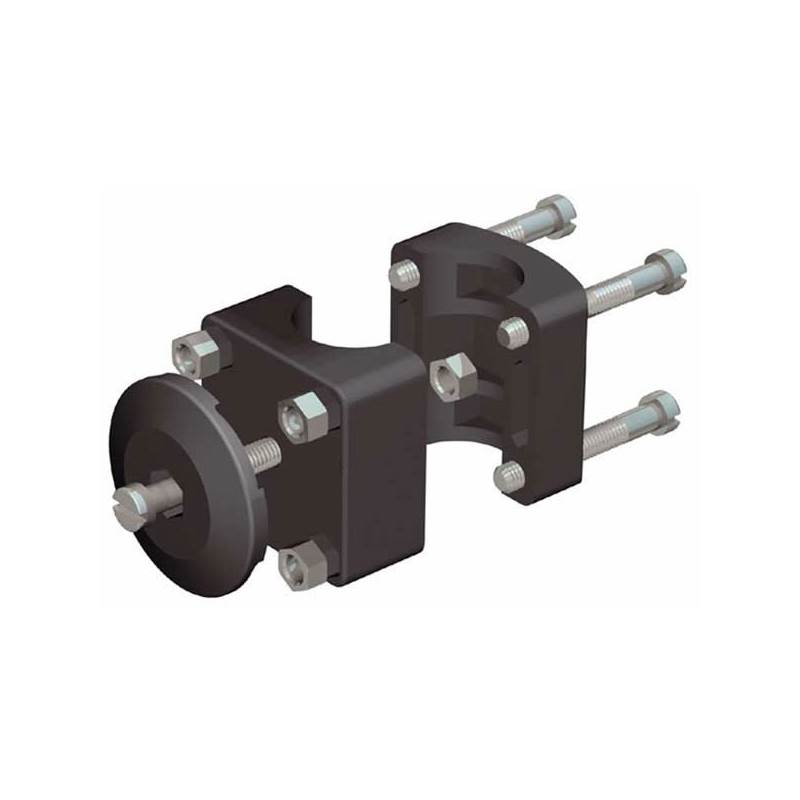

Swivel Connectors

Swivel Connectors fasten the basket to the rail at any angle. It is recommended that two swivel connectors are used for a single basket, two for a twin basket and three for a triplet of baskets. Swivel connectors are sold as singles.

Options

• 52402: Standard Swivel Connector 25-mm rail
• 52404: Small Swivel Connector 22-mm rail
• 52406: Large Swivel Connector 30-mm rail
• 53408: Large Swivel Connector 32-mm rail

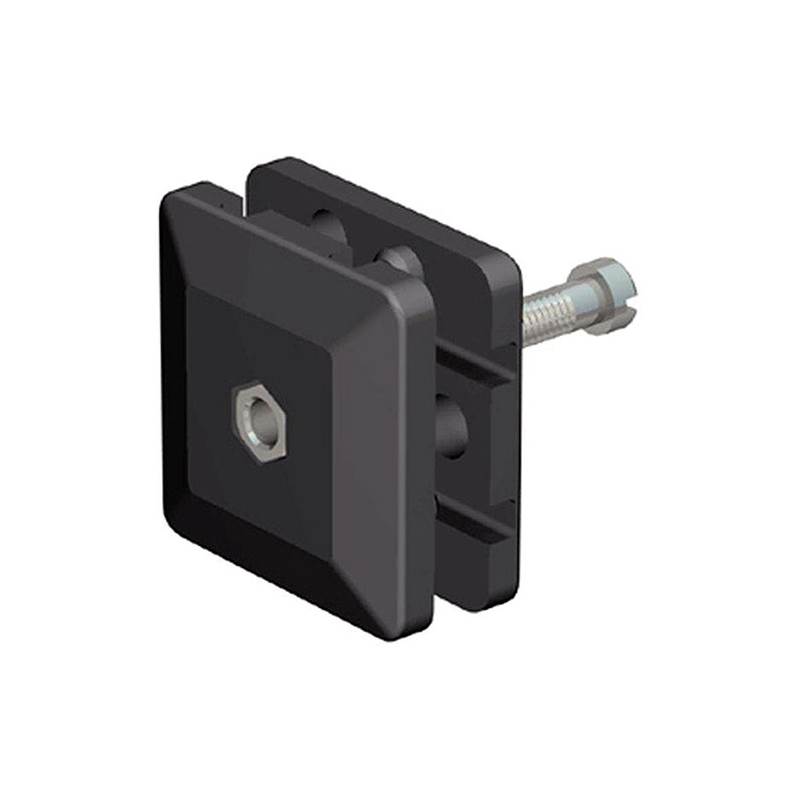

Parallel Connectors

Parallel connectors fasten baskets to each other when they are fitted as twins or triplets etc. A pair of Parallel Connectors are required to join two baskets and the connectors are sold in pairs.

• 52403 Parallel Connectors (pair)
